Description

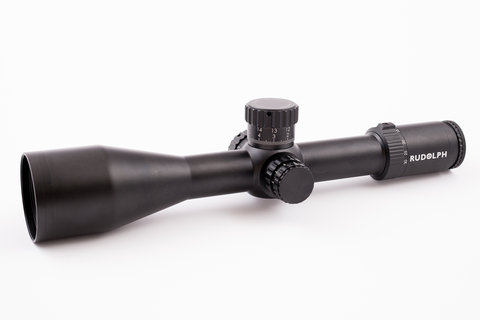

The OPS model stands for "Optical Precision Series" and that is what it offers. It has been developed for shooters to achieve top performance and extend individual limits. The ED glass of our OPS 5-30x56mm FFP provides outstanding clarity and superb contrast, even in dismal light. The T9 FFP reticle provide you with consistent values, regardless of the magnification setting. Extensive elevation travel (29 MRAD) allows target engagements at distances previously considered “out of range".

LOW POWER HIGH POWER

Magnification 5 30

Exit pupil diameter (mm) 8.2 1.9

Eye-relief (mm) 91 92

Actual FOV 3.12° 0.61°

Objective diameter56mm

Total Windage adjustment range16 MRAD

Total Elevation adjustment range29 MRAD

Tube diameter34mm

Tube material Black hard anodised aluminium (HV300)

Water proof Positive internal pressure 300kPa. Submersible 1m for 60 minutes.

Recoil proof1000G

Fog proofArgon purged

Temperature operating range-20 to +71°C

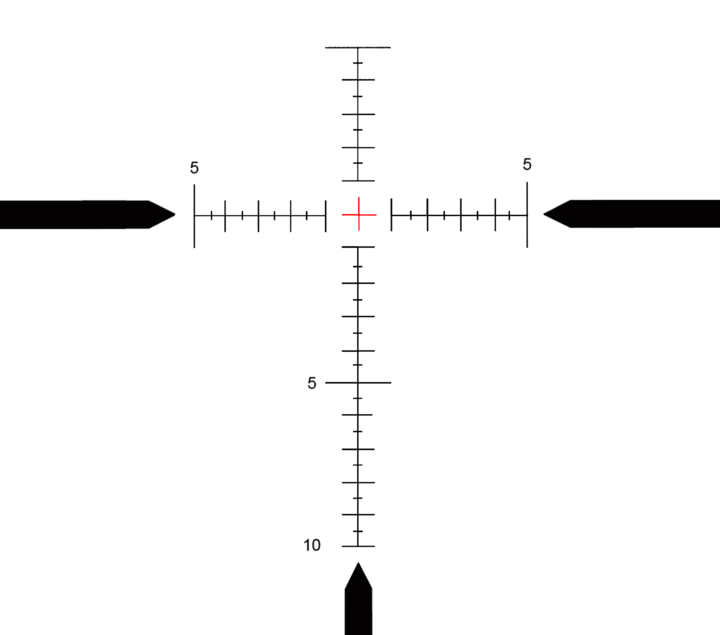

ReticleT9 FFP IR

Battery typeCR2032

Illumination 11x brightness settings with "off" position between each setting

Parallax Side focus, 25m to infinity

EyepieceEuropean-style fast focus

Antireflective lens coatingFully multi-coated, ED Glass

Light Transmission88.5% (day)  |  85.00% (night)

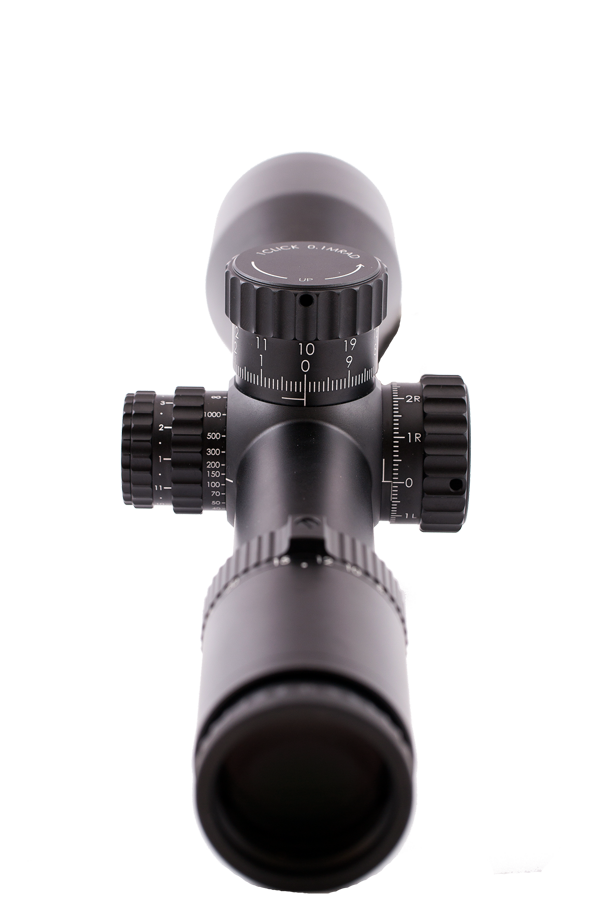

Windage / Elevation controlTactical / Target

Windage click value0.1 MRAD

Elevation click value0.1 MRAD

Length370

Weight1 150g

Country of Manufacture Japan
